• Black painted steel front bumper w/grained mold-in-color top cover
• Black painted rear bumper
• Black lower air dam
• Front fender vents
• Black box-rail & tailgate top-edge moldings
• Black painted grille
• Sealed beam halogen headlamps
• Pickup box/cargo lights
• Black fold-away manual mirrors
• Black door handles
• Solar tinted glass
• Interval windshield wipers
• Front license plate bracket *Standard in states where required. Optional in all other states.*
• Rear license plate bracket
• Removable locking tailgate w/black handle & Tailgate Assist

• HD vinyl front bench seat w/recline-inc: armrest, cupholders
• Forward-folding vinyl rear bench seat
• Black vinyl full-floor covering
• Color-keyed scuff plates
• Tire pressure monitoring system
• AM/FM stereo-inc: digital clock, (2) speakers
• (4) air registers w/positive shut-off
• Auxiliary pwr point
• Dash-top tray
• Glove box
• Ashtray & cigar lighter
• Color-keyed molded door trim panel-inc: hard armrest, grab handle, reflector
• Instrument panel mounted storage bin & trash bag hook
• Color-keyed cloth headliner
• Front passenger-side roof ride handle
• Rear seating roof ride handles
• Driver & passenger grab handles
• Rear seat LH/RH grab handles
• Front door operated dome lamp w/time delay off & IP switch
• Front/rear map lamps
• Dual color-keyed cloth sunvisors-inc: driver-side map strap, passenger-side mirror insert
• Dual color-keyed coat hooks

• 4-wheel anti-lock braking system (ABS)
• Driver & front passenger airbags
• Color-keyed safety belts w/front seat outboard height adjustable D-rings
• BeltMinder seatbelt-not-buckled chime & flashing warning light
• Child seat tethers on all rear passenger seats

6.4L OHV V8 TURBO-DIESEL POWER STROKE ENGINE

• 135-amp HD alternator
• dual 750 CCA battery
• turbo boost gauge
• air filter minder *Includes Winter Front Grille Cover in AK
• CO
• ID
• IA
• ME
• MI
• MN
• MT
• NH
• NY
• ND
• SD
• VT
• WI
• WY*

• 12V power outlets 2 12V power outlets
• 3-point seatbelt Rear seat center 3-point seatbelt
• 4-Wheel Disc Brakes
• 4WD type Part-time 4WD
• ABS brakes
• ABS Brakes 4-wheel antilock (ABS) brakes
• ABS Brakes Three channel ABS brakes
• Alternator Type Heavy-duty alternator
• AM/FM radio
• Antenna Fixed audio antenna
• Armrests front center Front seat center armrest
• Ashtray
• Auxiliary power take-off
• Basic warranty 36 month/36,000 miles
• Battery charge warning
• Battery type Dual lead acid batteries
• Beverage holders Front beverage holders
• Body panels Fully galvanized steel body panels with side impact beams
• Box style Standard style pickup box
• Brake type 4-wheel disc brakes
• Cab mounted cargo light
• Cabback insulator
• CD Single-disc CD player
• CD-R compatible
• Child door locks Manual rear child safety door locks
• Cigarette lighter Front cigarette lighter
• Clock Digital clock
• Compressor Twin turbo
• Corrosion perforation warranty 60 month/unlimited
• Cylinder head material Iron cylinder head
• Day/Night rearview mirror
• Door ajar warning
• Door mirror style Black door mirrors
• Door mirror type Standard style side mirrors
• Drive type Four-wheel drive
• Dual front impact airbags
• Emissions ULEV emissions
• Engine block material Iron engine block
• Engine Configuration Powerstroke V8
• Engine hour meter
• Engine Location Front mounted engine
• Engine Mounting direction Longitudinal mounted engine
• Engine Powerstroke 6.4L V-8 diesel direct injection, twin turbo, diesel, engine with 350HP
• Engine Short Powerstroke 6.4L V-8
• Engine temperature warning
• Engine/electric motor temperature gauge
• Floor coverage Full floor coverage
• Folding door mirrors Manual folding door mirrors
• Front anti-roll bar
• Front anti-roll Front anti-roll bar
• Front beverage holders
• Front head restraints Fixed front seat head restraints
• Front impact airbag driver Driver front impact airbag
• Front impact airbag passenger Passenger front impact airbag
• Front reading lights
• Fuel Type Diesel
• Gearshifter material Urethane gear shifter material
• Headlights Halogen headlights
• Headliner coverage Full headliner coverage
• Headliner material Cloth headliner material
• Height adjustable seatbelts Front height adjustable seatbelts
• High mount stop light High mounted center stop light
• Ignition Compression ignition system
• Ignition type Mechanical
• Instrumentation display Analog instrumentation display
• Interior courtesy lights Delay interior courtesy lights
• Key in vehicle warning
• License plate front bracket Front license plate bracket
• Limited slip differential Mechanical limited slip differential
• Limited Slip w/4.10 Axle Ratio
• Locking hub control Manual locking hub control
• Low level warnings Low level warning for fuel
• Low tire pressure warning
• Number of airbags 2 airbags
• Number of doors 4 doors
• Oil pressure gauge
• Oil pressure warning
• Overdrive transmission
• Passenger doors rear left Conventional left rear passenger door
• Passenger doors rear right Conventional right rear passenger door
• Passenger vanity mirror
• Power steering
• Powertrain type ICE
• Powertrain warranty 60 month/60,000 miles
• Premium ETR AM/FM Stereo w/Single CD/MP3
• Radiator
• Radio AM/FM
• Rear bumper step
• Rear cargo door Tailgate
• Rear reading lights
• Rear seat direction Front facing rear seat
• Rear seatback upholstery Carpet rear seatback upholstery
• Rear seats fixed or removable Fixed rear seats
• Rear Springs Heavy-duty rear springs
• Rear step bumper
• Rear window trim Black rear window trim
• Roadside warranty 60 month/60,000 miles
• Seating capacity 6
• Seek scan
• Spare tire Full-size spare tire with steel wheel
• Spare tire location Crank-down spare tire
• Speakers Standard grade speakers
• Special paint Monotone paint
• Springs front Front coil springs
• Springs rear Rear leaf springs
• Steering Hydraulic power-assist steering system
• Steering type Re-circulating ball steering
• Suspension Firm ride suspension
• Suspension ride type front Mono-beam rigid axle front suspension
• Suspension ride type rear Rigid axle rear suspension
• Suspension type rear Leaf spring rear suspension
• Tachometer
• Tailgate control Manual tailgate/rear door lock
• Tailpipe Stainless steel single exhaust
• Tow hooks front 2 front tow hooks
• Towing class Class V tow rating
• Towing hitch Trailer hitch
• Towing wiring harness Trailer wiring harness
• Transfer case Manual transfer case shift
• Transmission 6-speed manual
• Transmission Type Manual
• Trip computer
• Trip odometer
• Turbo gauge Turbo/supercharger boost gauge
• Variable panel light Variable instrument panel light
• Variably intermittent wipers
• Ventilated brakes Front and rear ventilated disc brakes
• Visor passenger mirror Passenger visor mirror
• Voltmeter
• Window Trim Black side window trim
• Windshield trim Black windshield trim
• Wipers Variable intermittent front windshield wipers

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (Primary): 650
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): HD 135
• Maximum Alternator Capacity (amps): HD 115
• Maximum Alternator Watts: 1950
• Cooling System
• Total Cooling System Capacity (qts): 28.5
• Total Cooling System Capacity (qts): 26.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6100
• Curb Weight - Front (lbs): 4659
• Curb Weight - Front (lbs): 3808
• Curb Weight - Rear (lbs): 2851
• Curb Weight - Rear (lbs): 2752
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Gross Vehicle Weight Rating Cap (lbs): 9400
• Gross Combined Wt Rating (lbs): 23000
• Gross Combined Wt Rating (lbs): 17000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1875
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1530
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 15200
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 10200
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3800
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2550
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: 2-Stage Leaf
• Spring Capacity - Front (lbs): 4000
• Spring Capacity - Rear (lbs): 6100
• Axle Type - Front: Dana 60 Monobeam
• Axle Type - Rear: Visteon Full-Floating
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.66 x 0.58
• Rear Brake Rotor Diam x Thickness (in): 13.39 x 0.47
• Tires
• Front Tire Order Code: TBK
• Rear Tire Order Code: TBK
• Spare Tire Order Code: TBK
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): 3195
• Rear Tire Capacity (lbs): 3195
• Spare Tire Capacity (lbs): 3195
• Revolutions/Mile @ 45 mph - Front: 664
• Revolutions/Mile @ 45 mph - Rear: 664
• Revolutions/Mile @ 45 mph - Spare: 664
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.8
• Turning Diameter - Wall to Wall (ft): 53.7
• Frame
• Frame Type: Ladder-Type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 30.5
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 156.2
• Length, Overall w/o rear bumper (in): 246.2
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 79.3
• Overhang, Front (in): 37.6
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 154.3
• Cab to Axle (in): 39.9
• Cab to End of Frame (in): 80.2
• Ground to Top of Load Floor (in): 34.7
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 36.5
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.1
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 81.8
• Cargo Box Width @ Top, Rear (in): 63.6
• Cargo Box Width @ Floor (in): 60.6
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.1
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 64.4
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): - TBD -
• Front Leg Room (in): - TBD -
• Front Shoulder Room (in): - TBD -
• Front Hip Room (in): - TBD -
• Second Head Room (in): - TBD -
• Second Leg Room (in): - TBD -
• Second Shoulder Room (in): - TBD -
• Second Hip Room (in): - TBD -
• Summary

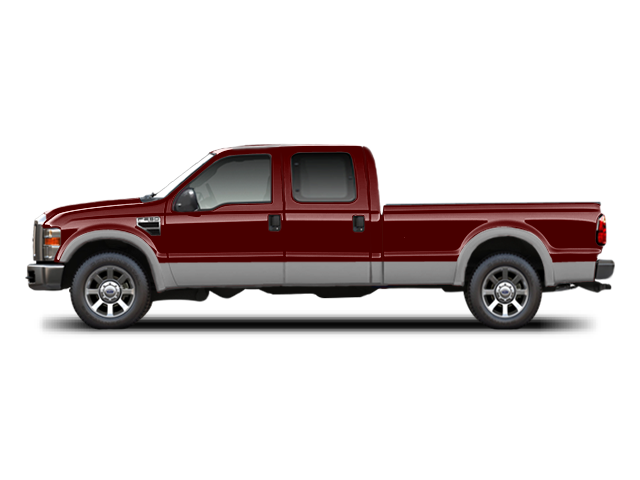

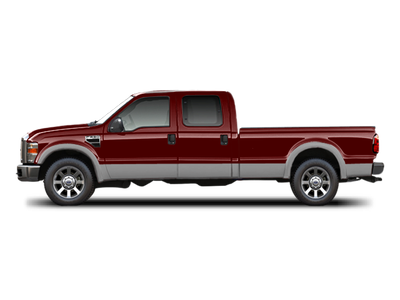

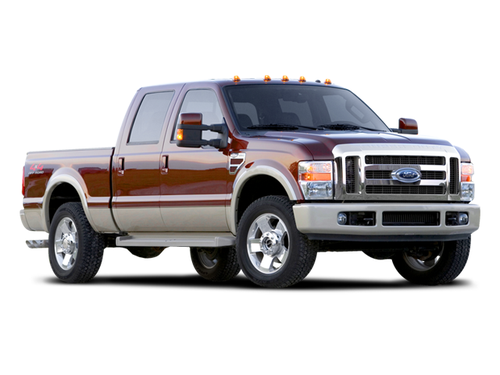

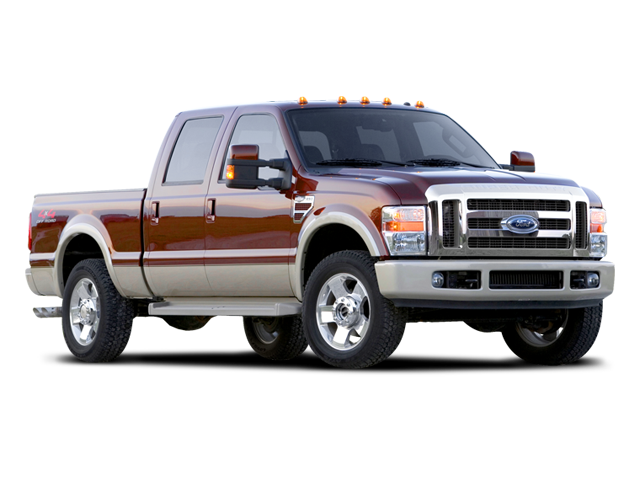

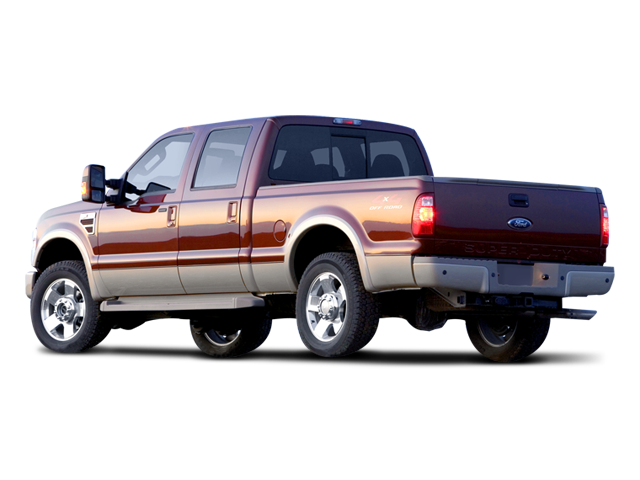

• Vehicle Name: Ford Super Duty F-250 SRW
• Body Style: Crew Cab 6-3/4'
• Body Code: 156" WB
